935-960M Lte Omnidirectional Lora Antenna 150W Flanged Vehicle Low-Frequency Spring Damping Drone FRP Antenna

Name: 935960M Lte Omnidirectional Lora Antenna 150W Flanged Vehicle LowFrequency Spring Damping Drone FRP Antenna
Brand: Leenz
Price: 1 USD

Quality 935-960M Lte Omnidirectional Lora Antenna 150W Flanged Vehicle Low-Frequency Spring Damping Drone FRP Antenna for sale

Brand Name : Leenz

Model Number : LZANT-10870-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 100 per day

Delivery Time : 15 days

Frequency : 935-960MHz

VSWR : <2.0

Peak Gain : 5dBi

Impedance : 50

Contact Now

935-960M omnidirectional high-power 150W flanged vehicle low-frequency spring damping drone FRP waterproof antenna

1. Specification

A. Electrical Characteristics
Frequency	935-960MHz
Impedance	50 Ohm
S.W.R.	<2.0
Antenna Gain	5dBi
Efficiency	≈90%
Polarization	Linear
Horizontal Beamwidth	360°
Vertical Beamwidth	35±5°
Max Power	150W
B. Material & Mechanical Characteristics
Connector Type	N - Female
Dimension	Φ25*750mm
Colour	Army black
Weight	1.1Kg
Radome material	Fiberglass
C. Environmental
Operation Temperature	- 45 ˚C ~ + 85 ˚C
Storage Temperature	- 45 ˚C ~ + 85 ˚C
Rated Wind Velocity	36.9m/s
Lighting Protection	DC Ground

2. Antenna - S Parameter Test Data

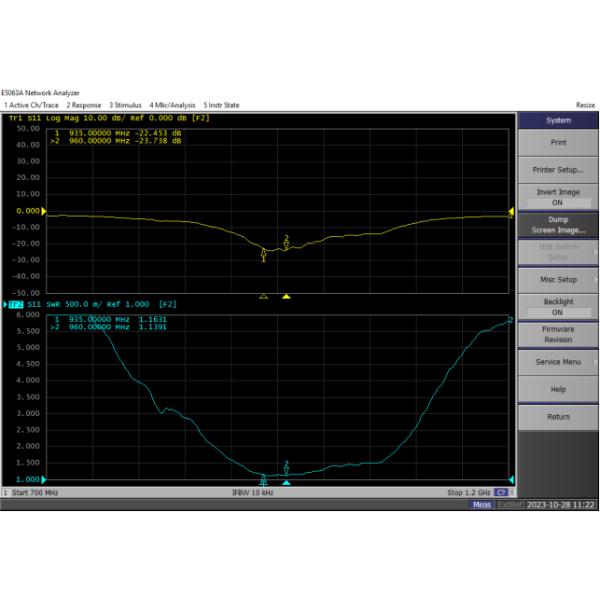

2.1 VSWR

935-960M Lte Omnidirectional Lora Antenna 150W Flanged Vehicle Low-Frequency Spring Damping Drone FRP Antenna

2.2 Total Efficiency & Gain:

Frequency(MHz)	935	940	945	950	955	960
Gain (dBi)	5.1	5.1	5.1	5.1	5.1	5.3
Efficiency (%)	97.0	96.5	95.1	93.0	92.2	97.0

935-960M Lte Omnidirectional Lora Antenna 150W Flanged Vehicle Low-Frequency Spring Damping Drone FRP Antenna

2.3 Radiation Pattern

	3D	2D-Horizontal	2D-Vertical
935MHz
945MHz
960MHz
