Satellite Standard Omnidirectional Antenna Long Range 870-880M 150W Flanged Vehicle Low-Frequency Spring Damping Drone

Brand Name : Leenz

Model Number : LZANT-10869-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 100 per day

Delivery Time : 15 days

Frequency : 870-880MHz

VSWR : <2.0

Peak Gain : 2dBi

Impedance : 50

Contact Now

870-880M omnidirectional high-power 150W flanged vehicle low-frequency spring damping drone FRP waterproof antenna

1. Specification

A. Electrical Characteristics
Frequency 870-880MHz
Impedance 50 Ohm
S.W.R. <2.0
Antenna Gain 5dBi
Efficiency ≈85%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 40±5°
Max Power 150W
B. Material & Mechanical Characteristics
Connector Type N - Female
Dimension Φ25*750mm
Colour Army black
Weight 1.1Kg
Radome material Fiberglass
C. Environmental
Operation Temperature - 45 ˚C ~ + 85 ˚C
Storage Temperature - 45 ˚C ~ + 85 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground

2. Antenna - S Parameter Test Data

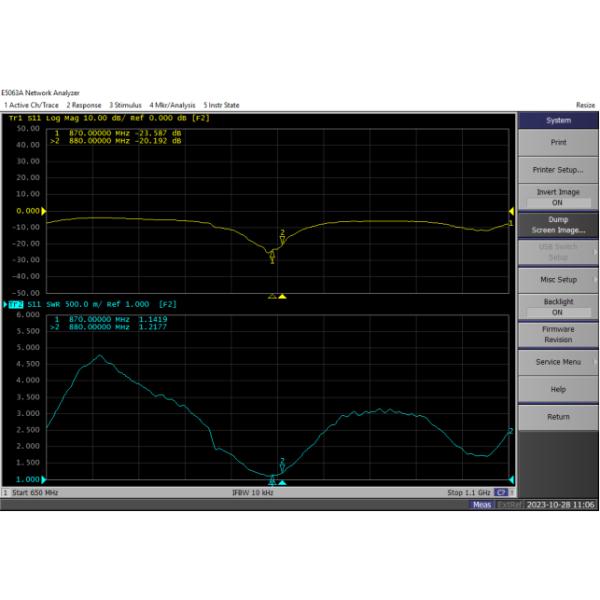

2.1 VSWR

Satellite Standard Omnidirectional Antenna Long Range 870-880M 150W Flanged Vehicle Low-Frequency Spring Damping Drone

2.2 Total Efficiency & Gain:

Frequency(MHz) 870 871 872 873 874 875 876 877 878 879 880
Gain (dBi) 4.6 4.6 4.6 4.6 4.6 4.5 4.5 4.5 4.5 4.5 4.5
Efficiency (%) 86.4 86.5 86.6 86.6 86.6 86.4 86.5 86.5 86.4 86.4 86.3
Satellite Standard Omnidirectional Antenna Long Range 870-880M 150W Flanged Vehicle Low-Frequency Spring Damping Drone
2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
870MHz Satellite Standard Omnidirectional Antenna Long Range 870-880M 150W Flanged Vehicle Low-Frequency Spring Damping Drone
Satellite Standard Omnidirectional Antenna Long Range 870-880M 150W Flanged Vehicle Low-Frequency Spring Damping Drone Satellite Standard Omnidirectional Antenna Long Range 870-880M 150W Flanged Vehicle Low-Frequency Spring Damping Drone
875MHz Satellite Standard Omnidirectional Antenna Long Range 870-880M 150W Flanged Vehicle Low-Frequency Spring Damping Drone Satellite Standard Omnidirectional Antenna Long Range 870-880M 150W Flanged Vehicle Low-Frequency Spring Damping Drone Satellite Standard Omnidirectional Antenna Long Range 870-880M 150W Flanged Vehicle Low-Frequency Spring Damping Drone
880MHz Satellite Standard Omnidirectional Antenna Long Range 870-880M 150W Flanged Vehicle Low-Frequency Spring Damping Drone Satellite Standard Omnidirectional Antenna Long Range 870-880M 150W Flanged Vehicle Low-Frequency Spring Damping Drone Satellite Standard Omnidirectional Antenna Long Range 870-880M 150W Flanged Vehicle Low-Frequency Spring Damping Drone
